SEALING STRIPS OF TURBINE

To maintain high efficiency of turbine performance, it is critical to have well sealed gaps between the rotors and stators. Improperly sealed gaps greatly increase the risk of steam and pressure losses. Properly sealed gaps result in less turbulence, optimized flows and increased turbine efficiency. This helps to generate more power with the same amount of energy input. Turbo seals machinery provides the best way to seal such loss-generating turbine gaps. That helps you to save money and reduce CO2 emissions. Turbo seals machinery designs, manufactures and supplies the world’s largest range of seal strips for all makes of turbines. Precisely matched caulking wires are used to secure the seal strips to the rotor and turbine housing parts. This ensures that the steam only gets to where it belongs: on the turbine blades.

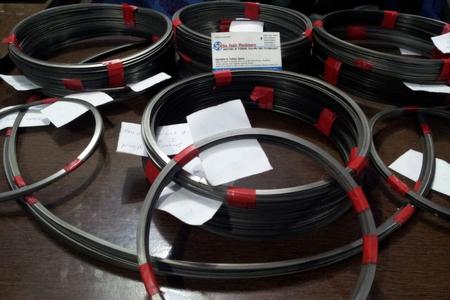

J - TYPE SEALING STRIP OF ROTOR


These type of sealing strips are used mostly used in

Siemens ,GE, Alstom , Man diesel Turbo, BHEL,Triveni steam and gas turbines.


Turbo seals machinery can manufacture sealing strip up to following sizes


  • Thicknesses  from 0.25 up to 0.50 mm
  • Diameters from 70 mm up to 4000 mm
  • Hights of strip from 3 mm up to 20 mm
  • made of special stainless metal from bohler uddeholm Germany.

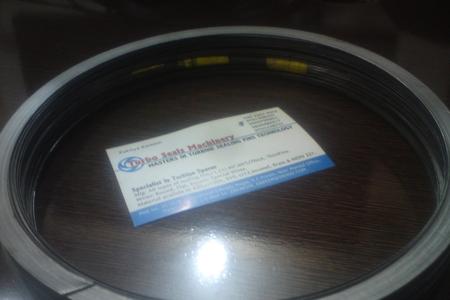

L - TYPE SEALING STRIP OF GLAND

These type of sealing strips have L Type design on there OUTER diameter These sealing strips are used mostly used in
Siemens ,GE, Alstom , Man diesel Turbo, BHEL,Triveni, Toshiba,Hitachi,almost all types of steam and gas turbines use these type of sealing strips on rotor of there turbines

Turbo seals machinery can manufacture sealing strip up to following sizes

  • Thicknesses  from 0.25 up to 0.80 mm
  • Diameters from 70 mm up to 4000 mm
  • Hights of strip from 3 mm up to 25 mm
  • made of special stainless metal special SS metal like X20CrMo13,MDN 321,SS 305 ,ST-16Mo as per your requirement

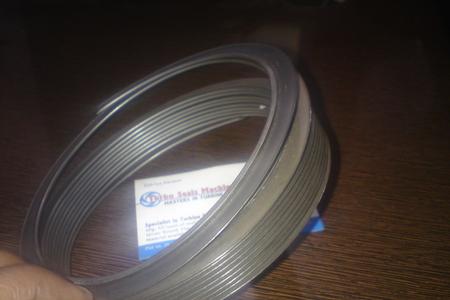

J - TYPE SEALING STRIP OF GLAND STRIP

These type of sealing strips have J Type design on there OUTER diameter and  are used mostly used in Siemens ,GE, Alstom , Man diesel Turbo, BHEL,Triveni steam and gas turbines on carriers,Diaphrams,GBC Carriers,stator and oil catcher of turbine generators

Turbo seals machinery can manufacture sealing strip up to following sizes


  • Thicknesses  from 0.25 up to 0.80 mm
  • Diameters from 70 mm up to 4000 mm
  • Hights of strip from 3 mm up to 20 mm
  • made of CuZn37 brass, or special SS metal like X20CrMo13,MDN 321,SS 305 ,ST-16Mo as per your requirement



           TURBO SEALS MACHINERY



TSM

L - TYPE SEALING STRIP OF ROTOR


These type of sealing strips have L Type design on there INNER diameter These sealing strips are used mostly used in

Siemens ,GE, Alstom , Man diesel Turbo, BHEL,Triveni, Toshiba,Hitachi,almost all types of steam and gas turbines use these type of sealing strips on rotor of there turbines

Turbo seals machinery can manufacture sealing strip up to following sizes

  • Thicknesses  from 0.25 up to 0.80 mm
  • Diameters from 70 mm up to 4000 mm
  • Hights of strip from 3 mm up to 25 mm
  • made of special stainless metal special SS metal like X20CrMo13,MDN 321,SS 305 ,ST-16Mo as per your requirement
